Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection

  • 1
  • 2

Brand Name : RION

Model Number : HDA436T-CAN2.0A

Certification : CE, ISO

Place of Origin : Guangdong, China

MOQ : 1

Price : $141.00/Pieces

Payment Terms : T/T, PayPal

Supply Ability : 5000/month

Delivery Time : 7 days for samples

Packaging Details : cartons

Usage : Crane angle sensor

Theory : dynamic angle finder

Output : CAN2.0A

Voltage - Supply : 9~36v

Output Type : CAN2.0A, CAN2.0B

Operating Temperature : -40C° ~ +85C °

protection class : IP67

High Resolution : 0.01°

Highly anti-vibration performance : >2000g

Zero temperature coefficient : ±0.01 °/℃

Sensitivity temperature coefficient : ≤100ppm/℃

Response time : 0.01s

static accuracy : ± 0.05°

Contact Now

crane angle control sensor

▶ ELECTRICAL CONNECTIONS

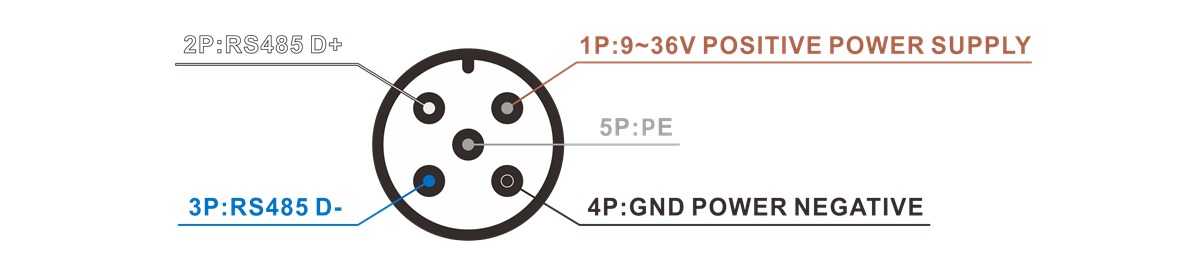

RS485 WIRING DEFINITION

PIN FUNCTION 1 PIN(BROWN) 2 PIN(WHITE) 3 PIN(BLUE) 4 PIN(BLACK) 5 PIN(GRAY)

9~36V

POSITIVE POWER SUPPLY

 485 D+ 485 D-

GND

POWER NEGATIVE

 PE

Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection

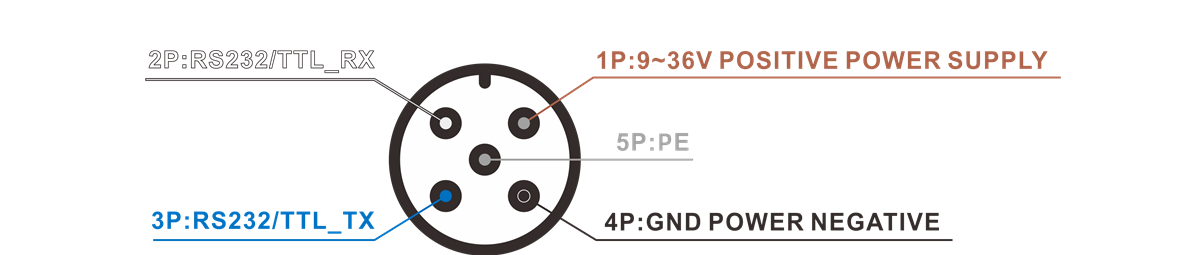

RS232/TTLWIRING DEFINITION

PIN FUNCTION 1 PIN(BROWN) 2 PIN(WHITE) 3 PIN(BLUE) 4 PIN(BLACK) 5 PIN(GRAY)

9~36V

POSITIVE POWER SUPPLY

RS232_RX/

TTL_RX

RS232_TX/

TTL_TX

GND

POWER NEGATIVE

 PE

Crane Control Tilt Angle Sensor CAN2.0A Output IP67 Waterproof Protection

HDA436T CONDITION INDEX
Measure range Roll ±180°, pitch ±90°, azimuth ±180° (initial value at power-down is 0°)
Measure axis X axis / Y axis / Z axis
Resolution 0.01°
Static accuracy @25℃ ± 0.05°
Dynamic accuracy @25℃ ± 0.1°
Bias Instability (Allan) 8°/h
Zero point temp. coefficient -40～85℃ ±0.01°/℃
Sensitivity temp. coefficient -40～85℃ ≤100ppm/℃
Power-on startup time 1S
Response time 0.01S
Output signal RS485/RS232/TTL
Electromagnetic compatibility According to EN61000 and GBT17626
MTBF ≥ 50000 hours / time
Insulation resistance ≥100 Megohm
Impact resistance 100g @ 11ms,3 axial direction (half sinusoid)
Anti-vibration 10grms,10～1000Hz
Waterproof level IP67
Cable Standard without wiring, optional 2m M12 aviation plug with PVC unshielded cable
Weight ≤165g (excluding cables)

▶ KEY FEATURES

★ Range (Roll angle ±180°, pitch angle ±90°, azimuth angle ±180°)

★ Dynamic accuracy: ± 0.1°

★ DC 9~6V wide voltage input

★ Wide temperature operation -40~+ 85℃

★ Resolution 0.01°

★ IP67 protection level

★ High anti-vibration performance>2000g

★ Size: L72×W47×H22.5mm

▶ ELECTRICAL PARAMETERS

PARAMETER CONDITION MIN TYP MAX UNIT
Supply voltage standard 9 12,24 36 V
Working current without load 60mA(12V) mA
Operating temp -40 +85 ℃
storage temp -40 +85 ℃

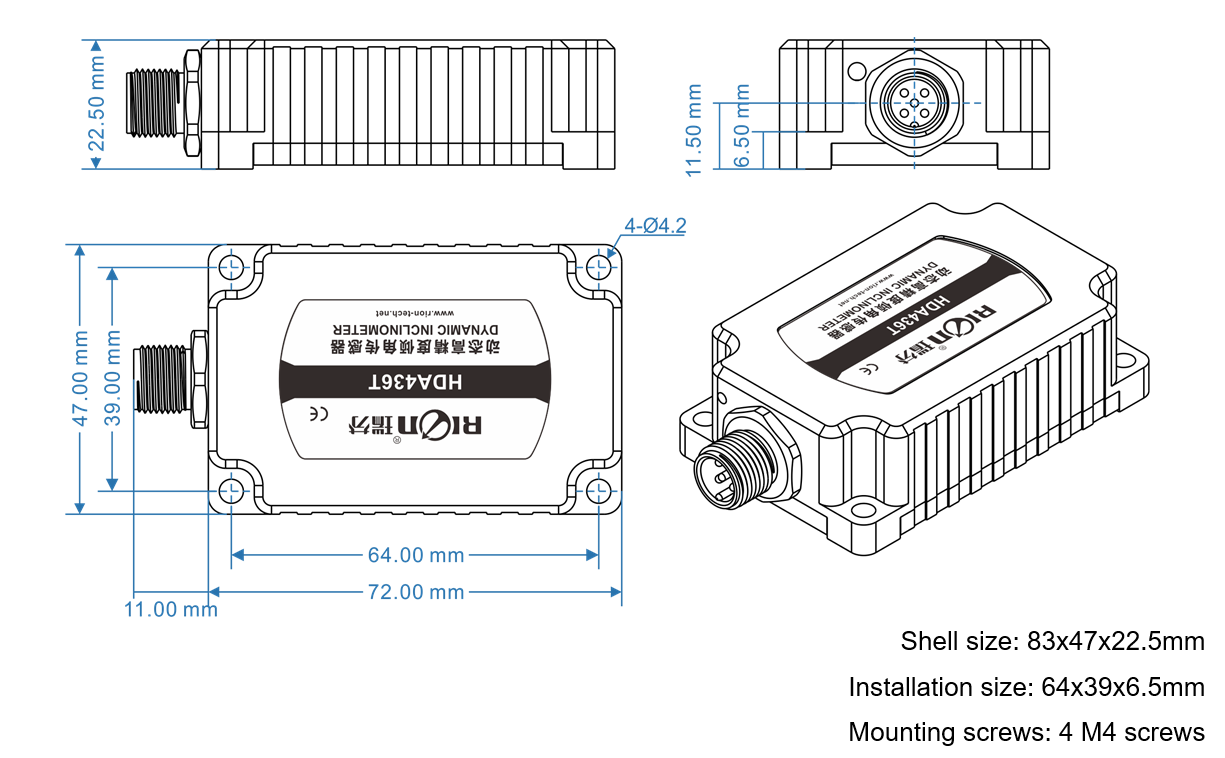

PRODUCT SIZE
