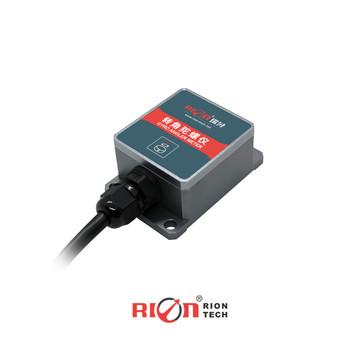

Vertical MEMS Inclination Sensor 20mA LCA318V

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : RION

Model Number : LCA328T

Packaging Details : 1 unit digital inclinometer in each inner wodeen box with thick sponge inside, 50pcs packed in strong & safe carton

MOQ : 10 Pieces

Price : $49.00/Pieces

Certification : CE, ISO

Payment Terms : T/T, Paypal

Supply Ability : 5000/month

Delivery Time : 7 days for samples order

inclination sensor measuring axis : Single axis (default X axis )

Range : within 360 ° is optional

Wide voltage input : DC9-36V

Output model : 4-20mA

protection : IP67

Working temperature : 40 ~ + 85 ℃

High vibration resistance : >2000g

High resolution : 0.02 °

Size : L90mm *W40mm * H26mm (customizable)

Best accuracy : 0.1 °

Contact Now

LCA318V Cost Effective Single axis Vertical Mounting MEMS Inclination Sensor 20mA Inclinometer

General Description

LCA318T series tilt angle is a small-volume MEMS uniaxial tilt sensor developed by RION. The output current is internally quadratic linearity corrected. It is a linearity current output tilt angle sensor. It is mainly aimed at applications where volume and cost are highly restrictive. Due to the built-in inclination unit of the latest micro-electromechanical production process, the product is small, long-distance transmission can reach more than 2000 meters, and it has strong resistance to external electromagnetic interference and can be adapted to long-term work in harsh industrial environments. This product adopts the non-contact measurement, which can output the current attitude and inclination in real time. It is simple to use and does not need to retrieve the relative changes. It is an ideal choice for industrial automation control and platform measurement attitude!

Key Features

★ Single inclination measurement ★ Any range within 360 ° is optional ★ Accuracy: 0.1 ° ★ Wide voltage input: 9~36V ★ Output mode: 4~20mA ★ Wide temperature operation: -40~+ 85 ℃ ★ IP67 protection level ★ High anti-vibration performance> 3500g ★ Resolution 0.02 ° ★ Small size 55 × 37 × 24mm (customizable)

Application

★ Electric blind chair leveling ★ Gimbal operation monitoring ★ Satellite antenna positioning ★ Medical bed level ★ Car chassis measurement ★ Four-wheel positioning system ★ Various engineering machinery angle control
Specification
Measure range
±30
±60
±90
°
Measure axis
X
X
X
Axis
Resolution
0.02
0.03
0.05
°
Zero output
0° output
12
12
12
mA
Measure accuracy@25℃
@25℃
0.1
0.1
0.15
°
Long term stability
<0.5
<0.5
<0.5
°
Zero Temp. coefficient
-40~85℃
±0.02
±0.02
±0.02
°/℃
Sensitivity temp. coefficient
-40~85℃
≤150
≤150
≤150
ppm/℃
Power on time
0.5
0.5
0.5
S
Response time
0.02
0.02
0.02
S
Response frequency
1~20
1~20
1~20
Hz
EMC
According to EN61000 and GBT17626
MTBF
≥45000 hours/times
Insulation Resistance
≥100MΩ
Impact resistance
100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration
10grms,10~1000Hz
Protection Grade
IP67
Cables
standard configuration: 1 meter wearproof,grease proofing,wide temperature,Shielded cables 4*0.3mm2
Weight
90g(without cable )
This parameter only list ± 30 °, ± 60 ° , ± 60 °series for reference. For other measurement ranges, please refer to the nearest neighbor parameter.
▶ ELECTRONIC CHARACTERISTICS
PARAMETERS
CONDITIONS
MIN
STANDARD
MAX
UNIT
Power supply
Standard
9
12,24
36
V
Working current
50 mA
42
mA
12V
26
mA
24
17
mA
Output
internal resistance
resistiveness
400
1000
kΩ
Current sampling resistor
Advice
250
R
Working temperature
-40
+85
Store temperature
-40
+85

FAQ
Q: How to choose suitable products before ordering?
A: According to your application, select the measurement axis , the appropriate measuring range, the main parameters of the output, or not sure, please contact us as soon as possible, our staff will be the first time to get in touch with you and provide the best solution and the most preferential price.
Q: What's kind of payment methods ?
A: We support T/T and Paypal methods, you can choose any one, after payment, please inform us in time, so that we can arrange your order and deliver the goods as soon as possible.
Q: How about lead time for order ?
A: After we receive your payment, the samples will be sent in 3-7 working days. If mass order please confirm the delivery schedule with our sales staff in advance so as to avoid unnecessary delay.
Q: How about quality inspection before shipment ?
A: We have several testing departments will be in strict accordance with the requirements of inspection of goods quality and functions, to ensure the quality of each with 100% qualified product, and the products will be inspected /tested again to ensure no any problem before shipment .
Q: What's the transportation methods ?
A: You can arrange courier to pick up goods from our company, or provide your international express account number to pay for your local courier after goods reach to your hands, but also can delivery by DHL, FEDEX, UPS, TNT, EMS... Etc through our shipping forwarder .
Q: How about after-sale service ?
A: Please check the package status in time after receipt of the goods as soon as possible, and product performance test, if any quality problem please contact us first, we will deal with your problems and feedback as soon as possible.
Q: How about product warranty and repair service?
A: Warranty for one year, In general, we can provide the repaired service in free charge if non damaged within one year , and individual cases can be extended to 3 years or more. If over a certain warranty period or damage caused by user , we will charge a rea
