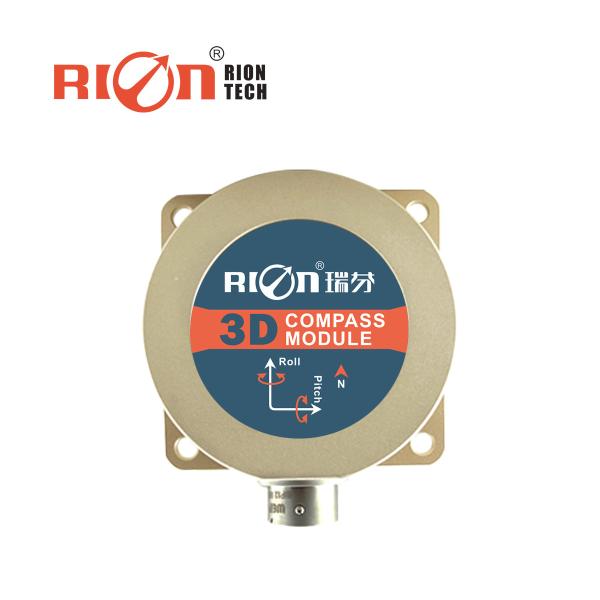

DCM302 Heading Angle 3D Digital Compass Magnetic Industrial Automation

  • 1
  • 2
  • 3

Model Number : DCM302-485

Place of Origin : Guangdong, China

Brand Name : RION

Packaging Details : Cartons and sponge

Supply Ability : 3000 Piece/Pieces per Week

Price : $266/Pieces

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T, PAYPAL

Delivery Time : 7 DAYS FOR SAMPLE

Usage : Magnetic Sensor

Application : Industrial Automation

Heading accuracy : 0.5°~0.8°

Tilt angle accuracy : 0.1°

Power supply : DC 5V

Output interface : Standard RS232/RS485/TTL

Protection class : IP 67

Wide temperature : -40℃~+85℃

Contact Now

DCM302 Heading Angle 3D Digital Compass Magnetic Industrial Automation

General Description

DCM302B is a high precision 3D electronic compass using the 2D plane calibration algorithm, the calibration no need 3D posture tilt , just flat-situ rotation a circle to complete the calibration process. Hard magnetic and soft magnetic calibration algorithms are adopted. make the compass eliminate the magnetic influence through calibration algorithm in the magnetic interference environment ,DCM302B integrated three-axis fluxgate sensor, in real time solver heading through the central processor, and using 3-axis accelerometer to proceed heading compensation for the wide range tilt angle, to ensure the compass still can provide high-precision heading data when the tilt angle up to ±85°.Electronic compass integrated high-precision MCU control, various output mode, standard interfaces including RS232/RS485/TTL and other interfaces, and accept other communication interface customization.

DCM302B, with its small size and low power consumption, is suitable for antenna stability, vehicles, systems integration, and other fields. Its high shock resistance and reliability ensure that the compass operates properly even in extremely harsh environments, making it highly suitable for such applications

Features:
Heading accuracy:0.5°~0.8°
Tilt angle measuring range :±85°
Tilt angle resolution: 0.1°
Tilt angle accuracy: 0.1°
Wide temperature : -40℃~+85℃
Size: L60×W59×H29mm
With hard magnetic ,soft magnetic and angle compensation
DC 5V power supply
Standard RS232/RS485/TTL output interface
IP 67 protection class

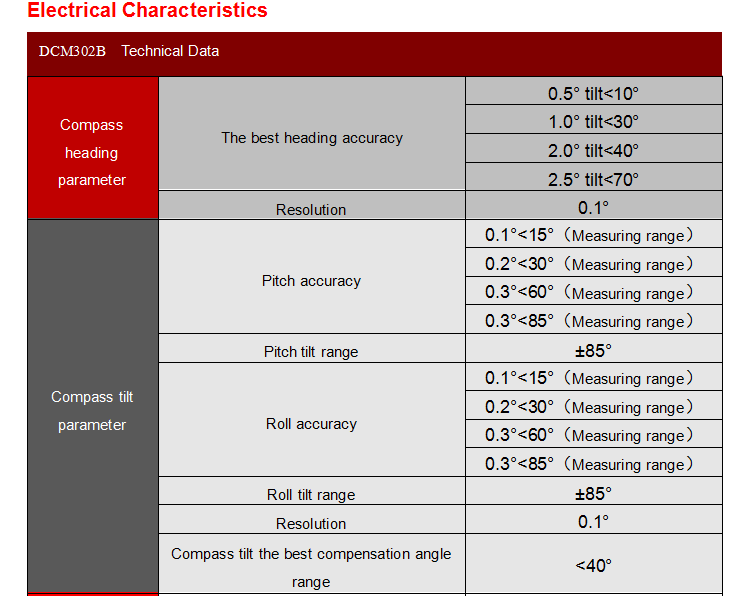

DCM301B&DCM302BPARAMETER
Compass headingThe best heading accuracy(RMS)0.5° tilt<10°
1.0° tilt<30°
2.0° tilt<40°
2.5° tilt<70°
Resolution0.1°

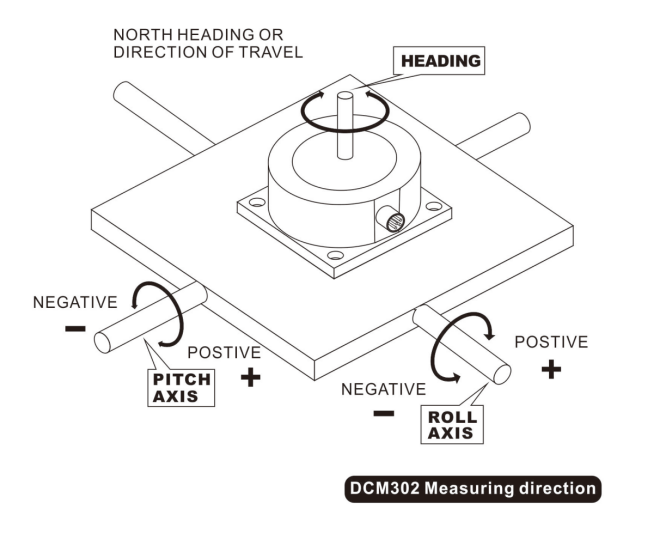

Compass tilt parameterPitch accuracy(RMS)0.1°<15°(Measure range)
0.2°<30°(Measure range)
0.3°<60°(Measure range)
0.3°<85°(Measure range)
Pitch tilt range±85°
Roll accuracy(RMS)0.1°<15°(Measure range)
0.2°<30°(Measure range)
0.3°<60°(Measure range)
0.3°<85°(Measure range)
Roll tilt range±85°
Resolution0.1°
The best tilt compensation range<40°
CalibrationHard iron calibrationYes
Soft iron calibrationYes
Magnetic field interference calibration methodPlane rotation in 1circle(2D Calibration)

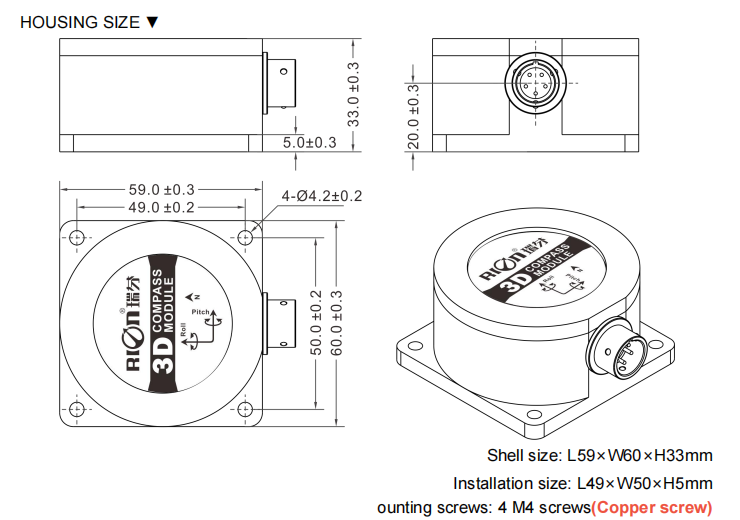

Physical featuresDimensionL60×W59×H29mm
WeightPCB:20g,with shell:100g
RS-232/RS485/TTL interface connector5PINconnector
Interface featuresStart delay<50MS
Maximum output rate20Hz/s
Communication rate2400 to 19200baud
Output formatBinary high performance protocol
PowerPower supply(Default)DC+5V
(Customized)DC9~36V
Current(Maximum)40mA
Ideal mode30mA
Sleep ModeTBD
EnviromentOperating range-40℃~+85℃
Storage temperature-40℃~+85℃
Resistance shock performance2500g
Electromagnetic compatibilityAccording to EN61000 and GBT17626
MTBF≥40000 hours/times
Insulation≥100M
Anti-shock100g@11ms,3 Axial Direction (Half Sinusoid)
Anti-vibration10grms,10~1000Hz

DCM302 Heading Angle 3D Digital Compass Magnetic Industrial Automation
DCM302 Heading Angle 3D Digital Compass Magnetic Industrial Automation
DCM302 Heading Angle 3D Digital Compass Magnetic Industrial Automation
